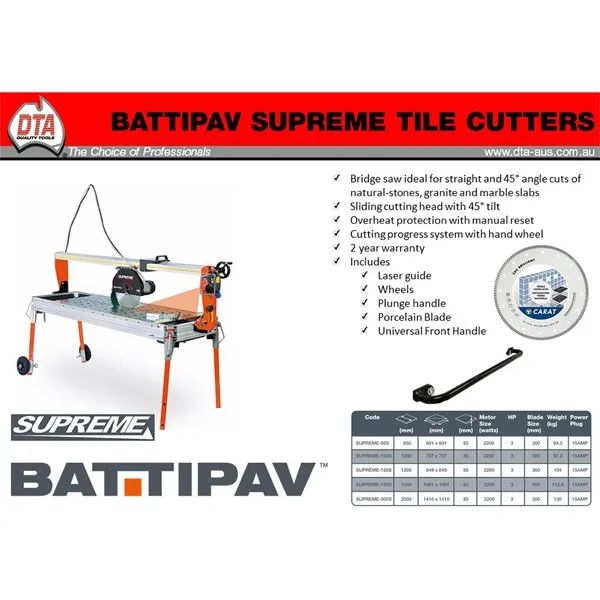

SUPREME is a bridge saw ideal for cutting natural stones, granite and marble slabs. It makes cuts moving forward manually in the engine group. Plus it is built to work with diamond disk Ø300 mm (laser instrument and kit wheels are supplied standard or as options)
Equipped with:
– Single phase engine 230V 50Hz 3Hp/2,2Kw with thermal and amperometrical protection
– Switch with release coil
– Overheat protection with manual reset
– Sliding cutting head and tilting engine
– Cutting progress system with hand wheel
– Adjustable legs
– Adjustable goniometer fence

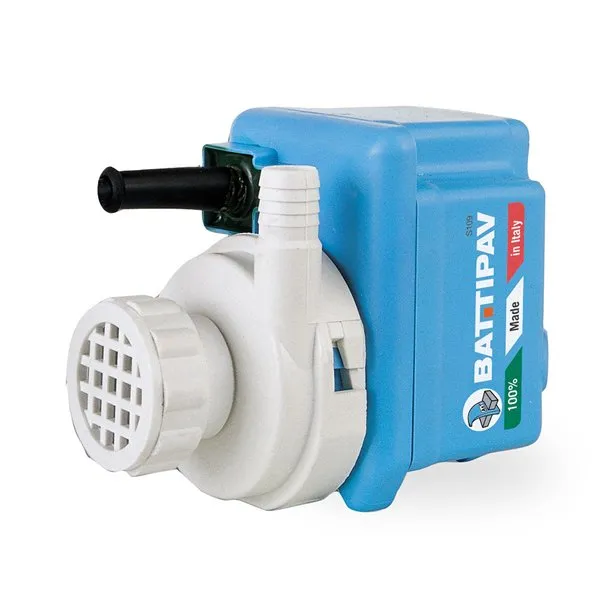

– Water recycling pump type S3
Disk Ø 300 not included.
| MACHINE’S DIMENSION IN STOCK | 72x195x101 cm |
|---|---|
| MAX CUTTING LENGHT | 1200 mm |
| SIZE TILE FOR DIAGONAL CUTTING | 845×845 mm |
| POWER ENGINE | 3Hp/2,2Kw, 9A |
| MAX CUTTING THICKNESS | 85 mm |
| MAX CUTTING DEPTH FOR 45° (JOLLY) CUT | 60 mm |
| LASER INSTRUMENT | Optional |
| ENGINE TYPE | SINGLE-PHASE 230V~50Hz |
| TOOL HOLE | 25,4 mm |
| MAX CUTTING DEPTH WITH 2 RUNS | 135 mm |
| DIAMOND BLADE DIAMETER | 300 mm |
| ROTATION SPEED | 2800rpm |
| AMPEROMETRIC PROTECTION | 13 A |
| SIDE BENCH DIMESION | 1185×625 mm |
| MACHINE’S DIMENSION | 1920x770x H1280 mm |
| WEIGHT | 86 kg |
| THERMIC PROTECTION | 160°C |
| FENCE | Standard |
| WHEELS | Optional |
| EXTENSION SIDE BENCH | Optional |
| SIDE BANCH WITH ROLLERS | Optional |
| CUTTING PROGRESS SYSTEM | Standard |
| LONG SLOT FOR SIDE TILE SUPPORT | Optional |
| SIDE TILE SUPPORT | Optional |
| WATER PUMP | S3 |
| WATER TANK CAPACITY | Min. 26/ Max.41 liters |
